DAEWOO MAXIMUS MULTI-PURPOSE CARGO CRANE TRUCK WITH MAN-LIFT BOX
DAEWOO 8000 LITER FIREFIGHTING WATER TANKER
DAEWOO FIREFIGHTING NOVUS TRUCK
A fully equipped firefighting vehicle designed for professional emergency response, this unit combines a robust truck platform with specialized systems built for fire suppression and rescue operations. It features a carefully engineered body structure, dependable mechanical components, and integrated safety elements to support demanding field conditions. The firefighting equipment, control systems, and auxiliary tools are arranged for efficiency and ease of operation, allowing responders to manage emergencies with speed and reliability. Overall, it represents a modern fire truck developed to deliver strong performance, durability, and readiness for a wide range of critical situations.
| TRUCK SPECIFICATIONS | ||||||||
| ENGINE | Brand | CUMMINS | ||||||
| Model | ISB ENGINE | |||||||
| Type | Intercooler, Diesel Engine | |||||||
| Max Power | Up to 385 HP at 2,800-3,000 rpm | |||||||
| Max Torque | 610-900 lbs. – ft (827 – 1,220 N-m) at 1,500 – 1,700 rpm | |||||||
| No. Of Cylinder | 6 Cylinder | |||||||
| Bore x Stroke (mm) | 106.9 x 124 | |||||||
| Displacement | 6.7 Liters | |||||||
| Controller Type | Electronic | |||||||
| TRANSMISSION | Model | ZF16S2231TO | ||||||
| Type | Manual | |||||||
| BRAKES | Service | Full Air Brake, Dual Circuit | ||||||
| Auxiliary | Exhaust Brake | |||||||
| WATER TANK | ||||||||
| Capacity | 1,000 Gallons | |||||||
| Materials | Stainless Steel 316L | |||||||
| Thickness | 5mm of stainless steel 316L | |||||||
| Mounting | Torsion free design on strong rubber | |||||||
| Manhole | 450mm diameter | |||||||
| Drain Outlet | Drain Outlet is located behind the rear axle | |||||||
| Piping | Overflow 3 inch, water supply 2.5 inch,water refilling 2.5 inch, water sunction 5 inch, water drain 2 inch | |||||||
| Baffle Plate | Provided with baffle having a thickness of 4mm stainless steel 316L | |||||||
| Tank Level Gauge | Electronic type | |||||||

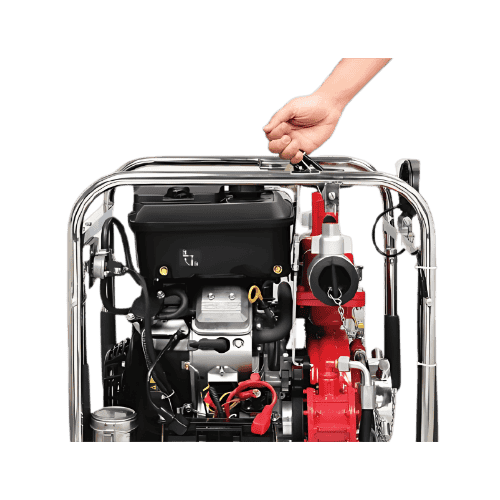

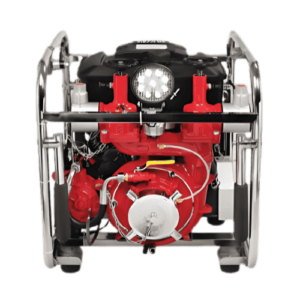

FIRE PUMP

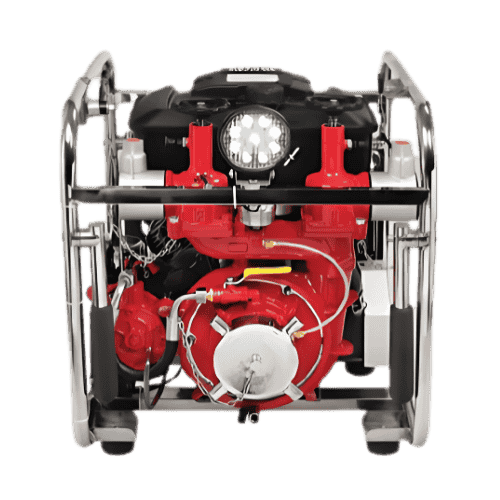

The fire pump installed on the unit is manufactured by FireFly Firepump PVT LTD. and comes as the MFV-MP-1030 model. It is a centrifugal two-stage type pump capable of delivering a maximum discharge of 3,000 L/min at 10 bar for low-pressure operation and 250 L/min at 40 bar for high-pressure operation. The system is supplied with a full set of accessories to support field maintenance and operation, including a 20-ton oil jack, spare tire handle, plier set, wrench monkey, open wrench, tool bag, and a combination wrench set. Additional tools such as ratchets with accessories, screwdriver sets, and wheel nut wrench with handle are also provided. For illumination and nighttime operation, the package includes auto LED work lights and flashlights, ensuring readiness for diverse emergency conditions.
| FOAM TANK | ||||||||
| Capacity | 200 Liters | |||||||
| Material | Glass Reinforced Plastic | |||||||
| Thickness | 7mm of Glass Reinforced Plastic | |||||||
| Manhole | 200mm diameter | |||||||
| Piping | Stainless steel | |||||||
| Tank Level Gauge | Electronic type | |||||||
| FIRE PUMP | ||||||||
| Brand | FireFly Fire Pump PVT LTD | |||||||
| Model | MFV-MP-1030 | |||||||
| ISO Certified manufacturer of fire pump | ||||||||
| Type: | Centrifugal two stage | |||||||
| Maximum discharge: | Low Pressure 3,000L/min @ 10 bar. High Pressure 250L/min @ 40 bar | |||||||
| Material | a. Pump Body: Corrosion-resistant anodized aluminum | |||||||
| b. High Pressure Impeller: Stainless steel | ||||||||
| c. Low Pressure impeller:Stainless steel | ||||||||
| d. Impeller shaft: Stainless steel | ||||||||
| e. Shaft seal: Maintenance -free mechanical seal | ||||||||
| DRIVE | a. Full clutch independent power take off (PTO) | |||||||
| b. Sandwich type(between the chassis,engine and transmission) | ||||||||
| c. Pneumatic driving mode by means of the electric solenoid valve | ||||||||
| DESIGN FEATURES | a. Meets and complies EN 1028, Certificate of compliance to ISO 17025 standardas | |||||||
| b. Designed to pump both high and low pressure simultaneously | ||||||||
| c. Lightweightm,corrosion -resistant construction | ||||||||
| d. Automatic piston primer | ||||||||
| e. Easily Accessible high pressure strainer | ||||||||
| f. Built-in high pressure relief valve | ||||||||
| g. Automatic thermal relief valve | ||||||||

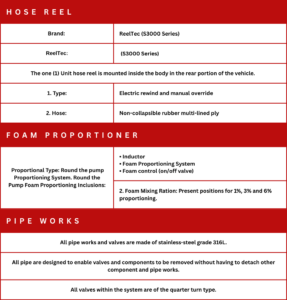

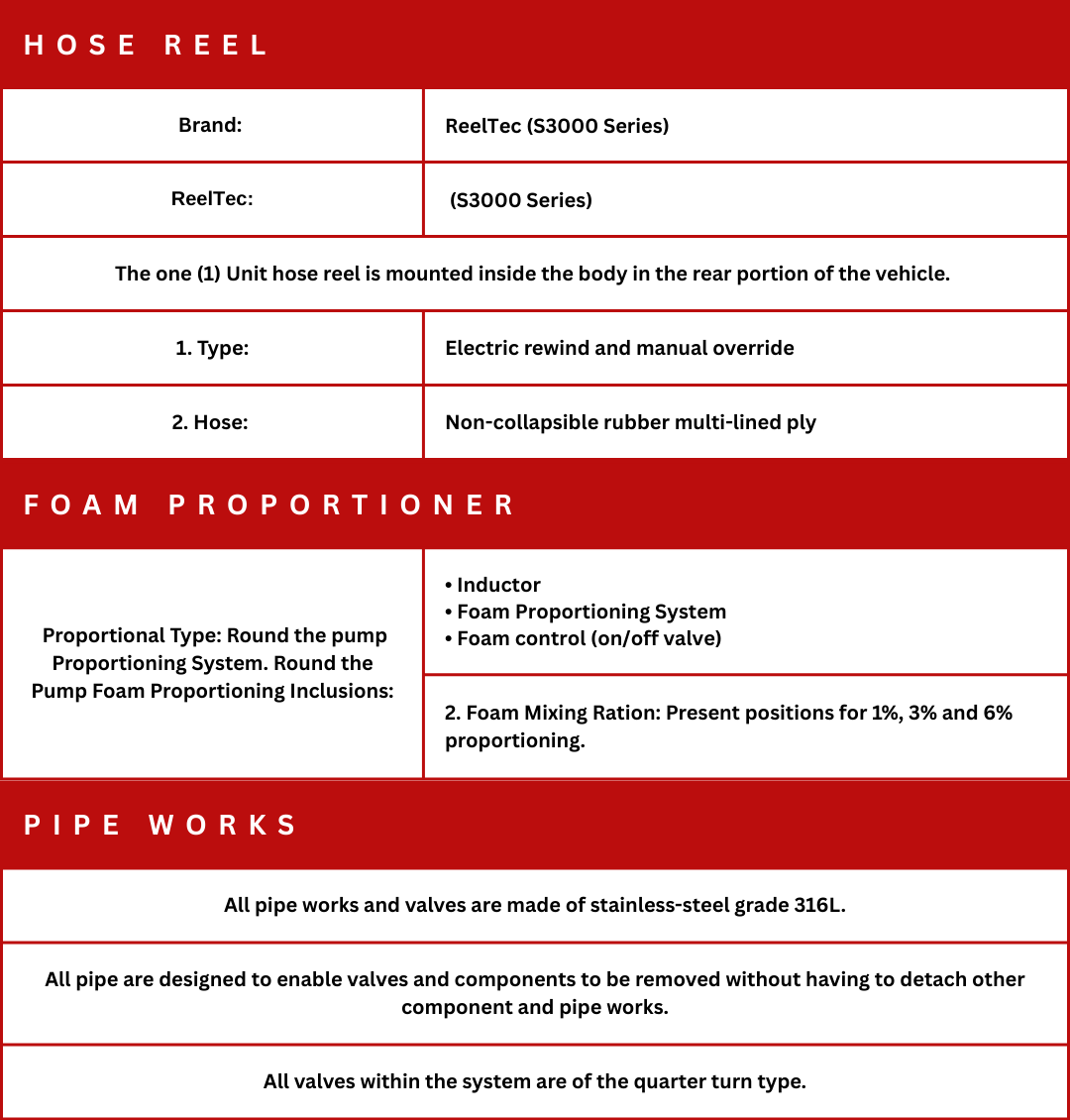

The unit is equipped with a hose featuring a 25-millimeter bore and a 30-meter length, providing ample reach and flow capacity to support effective firefighting operations.

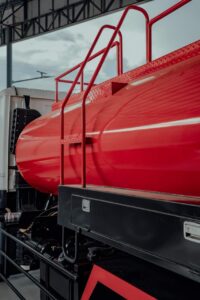

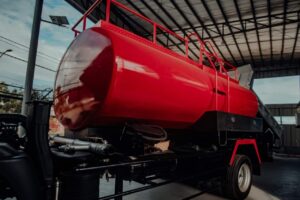

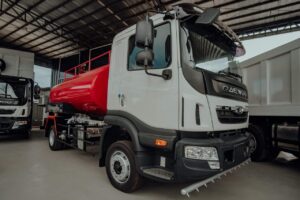

DAEWOO 8000 LITER MULTI-PURPOSE WATER TANKER
The Daewoo 8000 Liter Multi-Purpose Water Tanker is a robust and versatile vehicle designed for efficient water transportation and distribution across a variety of applications. Built on a durable Daewoo commercial chassis, this tanker features a high-capacity 8000-liter stainless steel or carbon steel tank, ideal for use in construction, agriculture, firefighting, and municipal services. It is equipped with a powerful water pump system for efficient loading and discharge, along with spray nozzles for dust suppression and road cleaning. The vehicle combines reliable performance with user-friendly controls, ensuring safe and effective operation in demanding environments.
⤷ 1 Water Tank
⤷ 1 Centrifugal Pump(Volute)
⤷ 1 Hose Rewind Reel
⤷ 1 Spray Bar
⤷ 1 set Flush Nozzle
⤷ 1 set Electric Control System
⤷ 1 set Piping System
⤷ Consist of Water Storage Tank, Water Loading System and Water Sprinkle system.
⤷ Tank Capacity: 8000 Liters
⤷ Centrifugal Pump Volume Discharge – 0.63 /min

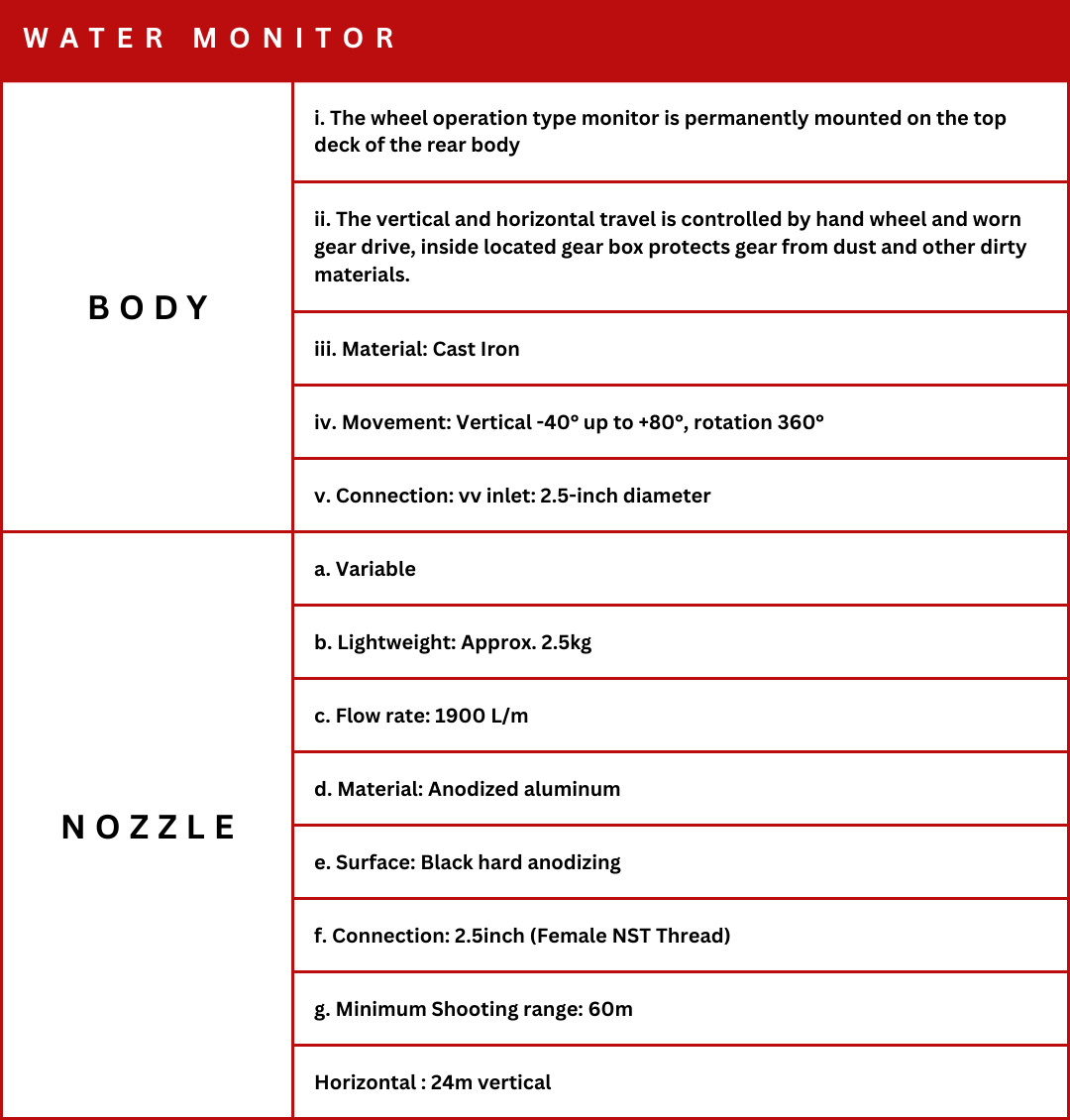

⤷ Water Cannon – 180° Rotation(Upper, Lower, Left, Right)
⤷ Hose Reel – 25A, 30 Meter
⤷ Front Flush Nozzle
Discover high-quality truck parts built for durability and performance. From rugged wheels and reliable batteries to spacious cabins and clear rearview mirrors, our selection ensures every component meets industry standards. Whether you’re upgrading, replacing, or customizing, we provide the essential parts that keep your truck running smoothly and safely on the road.
TRUCK PARTS

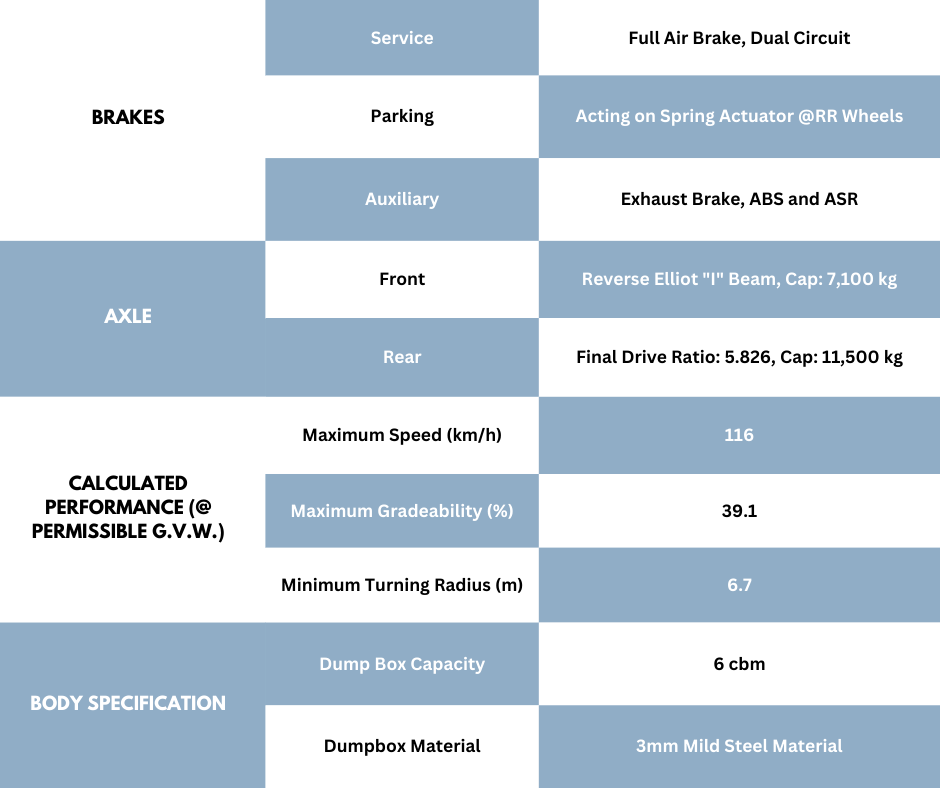

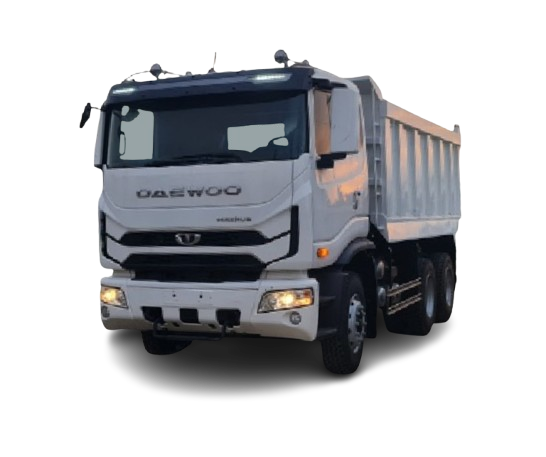

DAEWOO MAXIMUS DUMP TRUCK
The Daewoo Maximus Dump Truck (6 CBM) is a rugged, reliable work truck built for construction and material hauling. It combines a powerful diesel engine with a strong chassis, smooth manual transmission, and a durable steel dump body. Designed for tough job sites, it offers stable handling, dependable braking, and easy maneuverability, making it well suited for construction, mining, and infrastructure projects.
DAEWOO MAXIMUS DUMPTRUCK
The Daewoo Maximus Dump Truck is built for powerful performance and reliable heavy duty operations. Designed with a robust chassis and high capacity dump body, it is ideal for construction, hauling, and waste management projects. Powered by advanced engineering from Daewoo, the truck delivers strong torque, durability, and fuel efficiency for demanding work environments. Its modern design, driver comfort, and dependable hydraulic dumping system ensure efficient and safe daily operations. The Daewoo Maximus stands as a trusted solution for industries that require strength, productivity, and long term reliability.
With its heavy duty suspension and reinforced frame, the truck can handle rough terrains and large loads with ease. The spacious and ergonomic cabin provides better visibility and comfort for drivers during long working hours. Built for productivity and durability, the Daewoo Maximus Dump Truck helps businesses complete demanding tasks efficiently and reliably. 🚛
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.

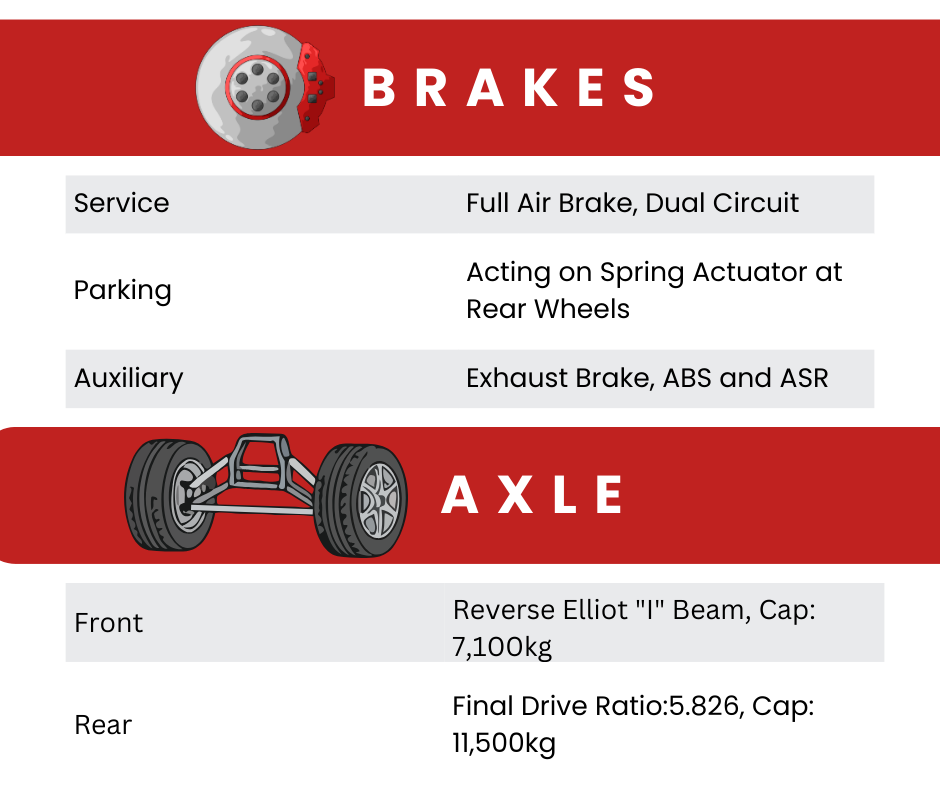

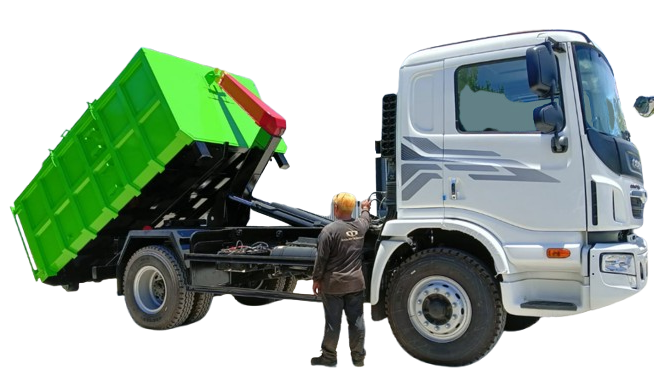

DAEWOO MAXIMUS ARMROLL TRUCK

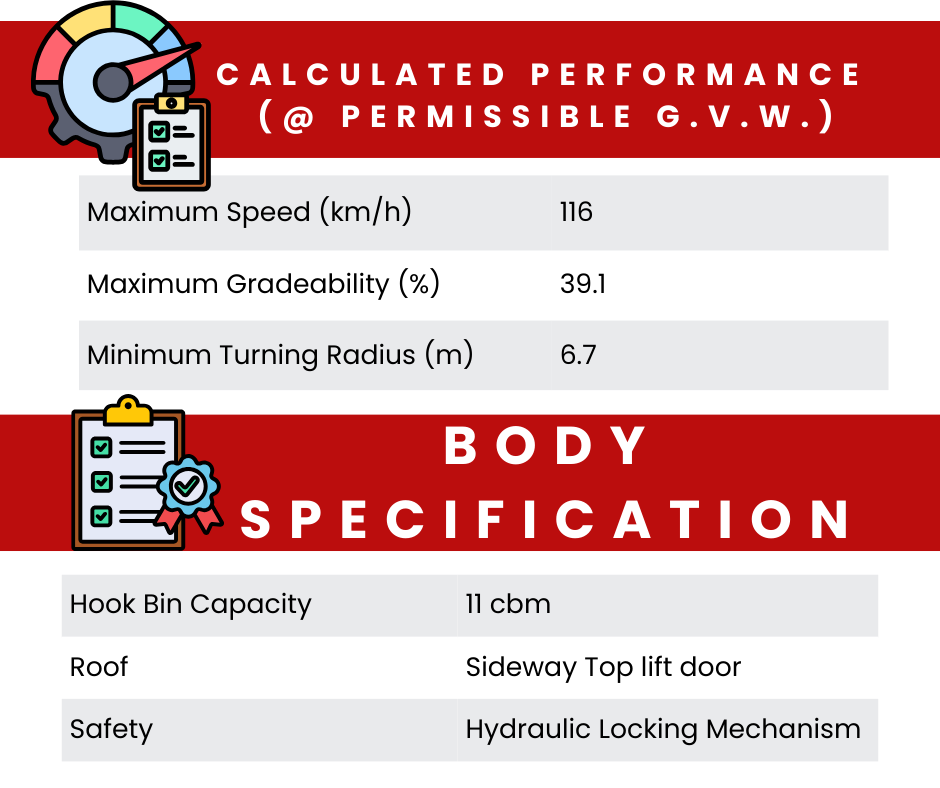

The Daewoo Maximus Arm Roll Truck (11 CBM) is a robust and efficient waste-handling vehicle designed for demanding urban and industrial operations. Built on a durable chassis with a powerful diesel drivetrain, it delivers dependable performance for container lifting, transport, and unloading tasks. The arm roll system allows for smooth, controlled handling of containers, improving operational speed and reducing manual effort on site.
Its cab-forward design offers good visibility and driver comfort, making it well suited for frequent stop-and-go operations. The truck is engineered for stability and safety, with reliable braking support and a hydraulic locking mechanism to secure the load during transport.

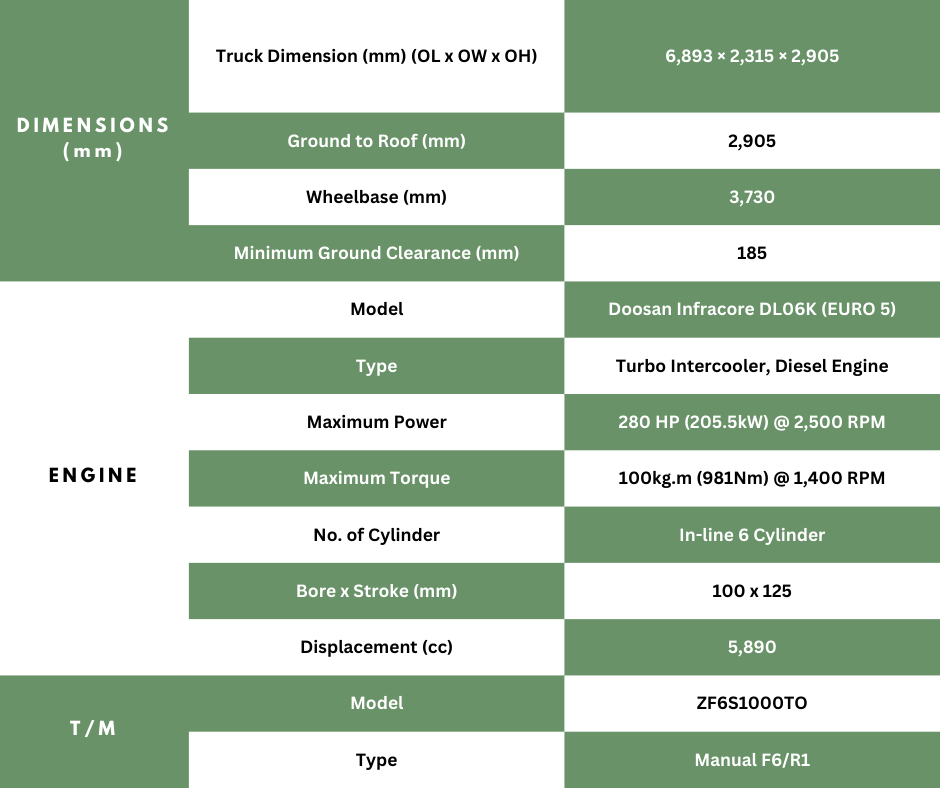

| DIMENSIONS (mm) | Truck Dimension (mm) | 6,893 x 2,315 x 2,905 | |||||
| (OL x OW x OH) | |||||||
| Ground to Roof | 2,905 | ||||||
| Wheelbase | 3,730 | ||||||
| Minimum Ground Clearance | 185 | ||||||

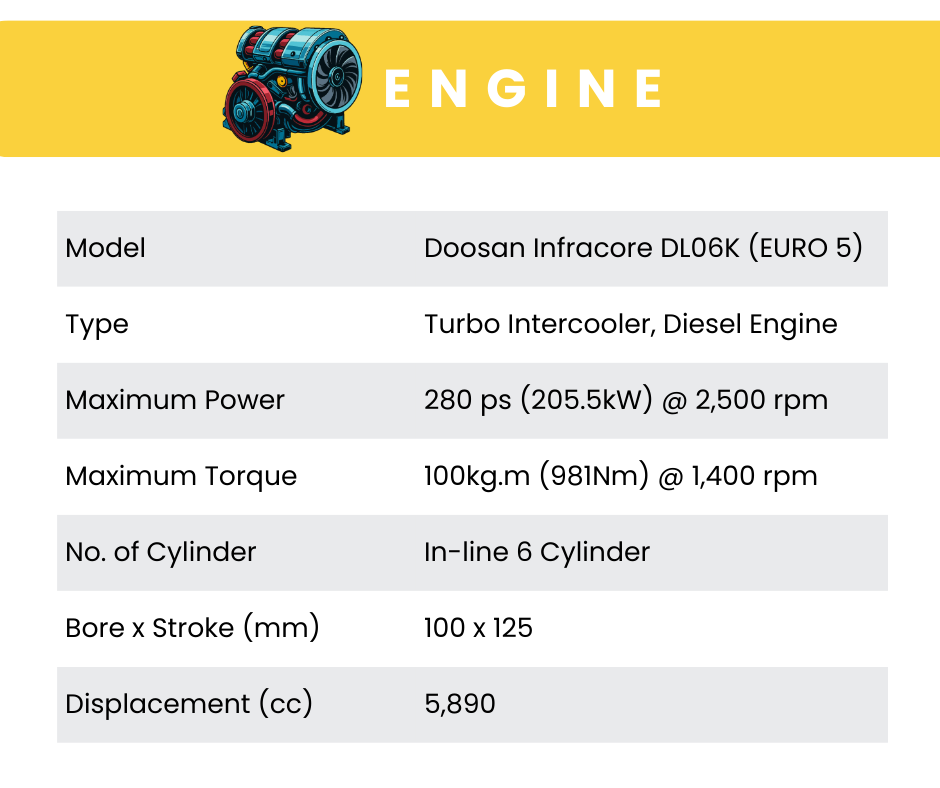

| ENGINE | Model | Doosan Infracore DL06K (EURO 5) | |||||
| Type | Turbo Intercooler, Diesel Engine | ||||||
| Maximum Power | 280 HP (205.5kW) @ 2,500 RPM | ||||||
| Maximum Torque | 100kg.m (981Nm) @ 1,400 RPM | ||||||
| No. of Cylinder | In-line 6 Cylinder | ||||||
| Bore x Stroke (mm) | 100 x 125 | ||||||
| Displacement (cc) | 5,890 | ||||||

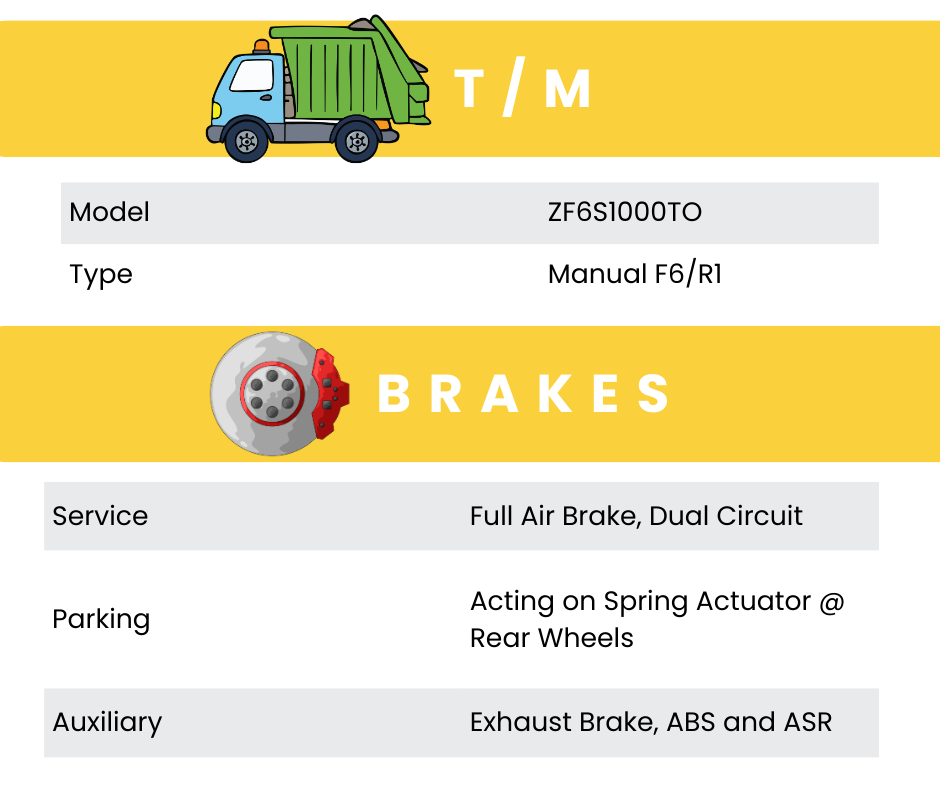

| TRANSMISSION | Model | ZF6S1000TO | |||||
| Type | Manual F6/R1 | ||||||
DAEWOO GARBAGE COMPACTOR
The Daewoo Garbage Compactor Truck is a heavy-duty waste collection vehicle engineered to deliver efficient hauling, compacting, and disposal of municipal solid waste. Designed for demanding urban and rural operations, it features a robust chassis paired with a high-performance turbo-intercooled diesel engine, ensuring exceptional durability, strong load-handling capabilities, and consistent performance even under continuous heavy use.
With its advanced hydraulic compaction system, the truck maximizes trash volume reduction, allowing for fewer trips and improved operational productivity. The optimized cabin provides enhanced driver comfort and visibility, while the reinforced body structure ensures long-term reliability. Built for efficiency, safety, and endurance, the Daewoo Garbage Compactor Truck is an ideal solution for LGUs, waste management companies, and industrial facilities seeking a dependable and cost-effective waste collection solution.

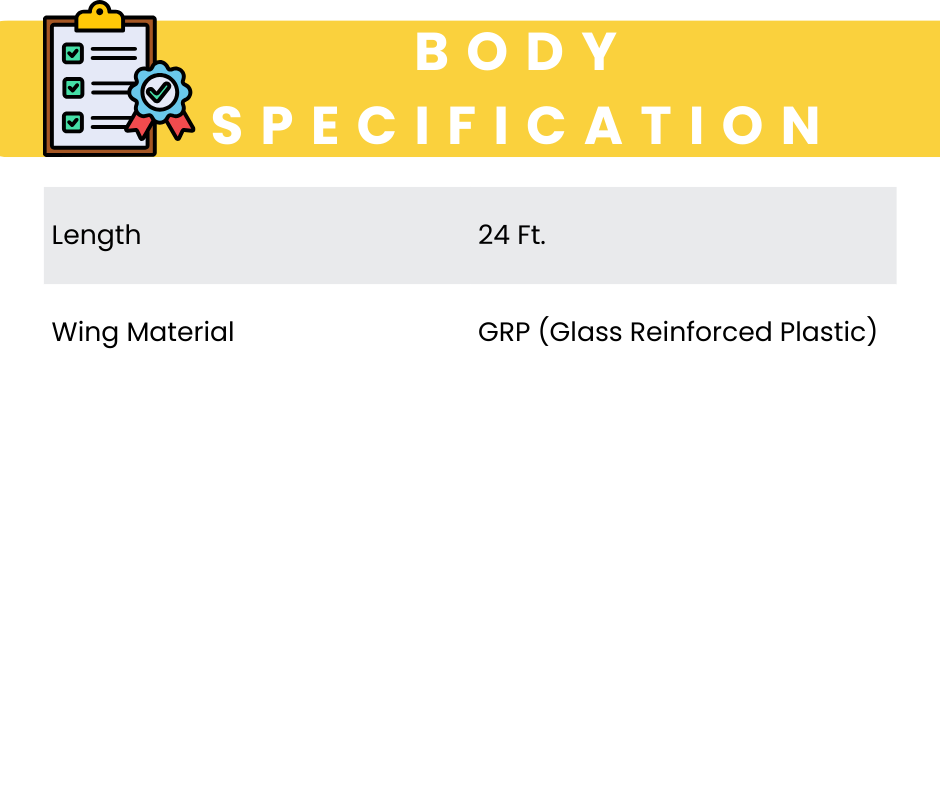

DAEWOO MAXIMUS WINGVAN
This is a WingVan designed for efficient cargo transport. It features a spacious box-type body with wide side-opening panels, allowing quick and convenient loading and unloading from multiple directions. The cab is modern and aerodynamic, built for driver comfort during long hours on the road. Beneath the body, the truck is powered by a strong turbo-intercooled diesel engine paired with a manual transmission, giving it reliable performance for hauling loads. Overall, it’s a practical and sturdy vehicle commonly used for logistics, deliveries, and general transport operations.
Overall, this WingVan truck offers a dependable combination of strength, efficiency, and practicality. With its durable construction, capable engine performance, and thoughtfully designed cargo body, it supports smooth and reliable operations across various delivery and transport needs. Built for both functionality and convenience, it stands as a versatile solution for businesses looking to move goods safely and efficiently.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.
Content not available
Please check back later for detailed specifications of this truck. Information such as engine type, transmission, capacity, and dimensions will be displayed here once available.

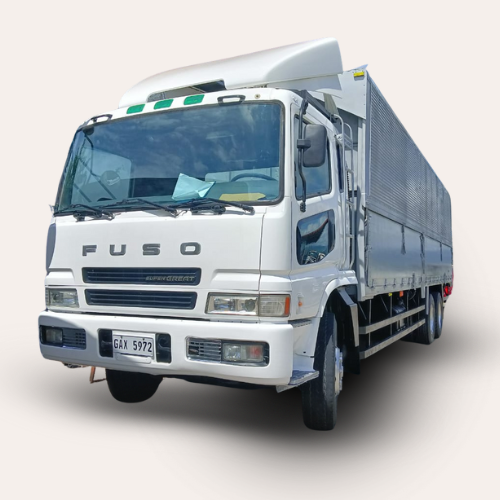

FUSO SUPER FREAT WINGVAN TRUCK
